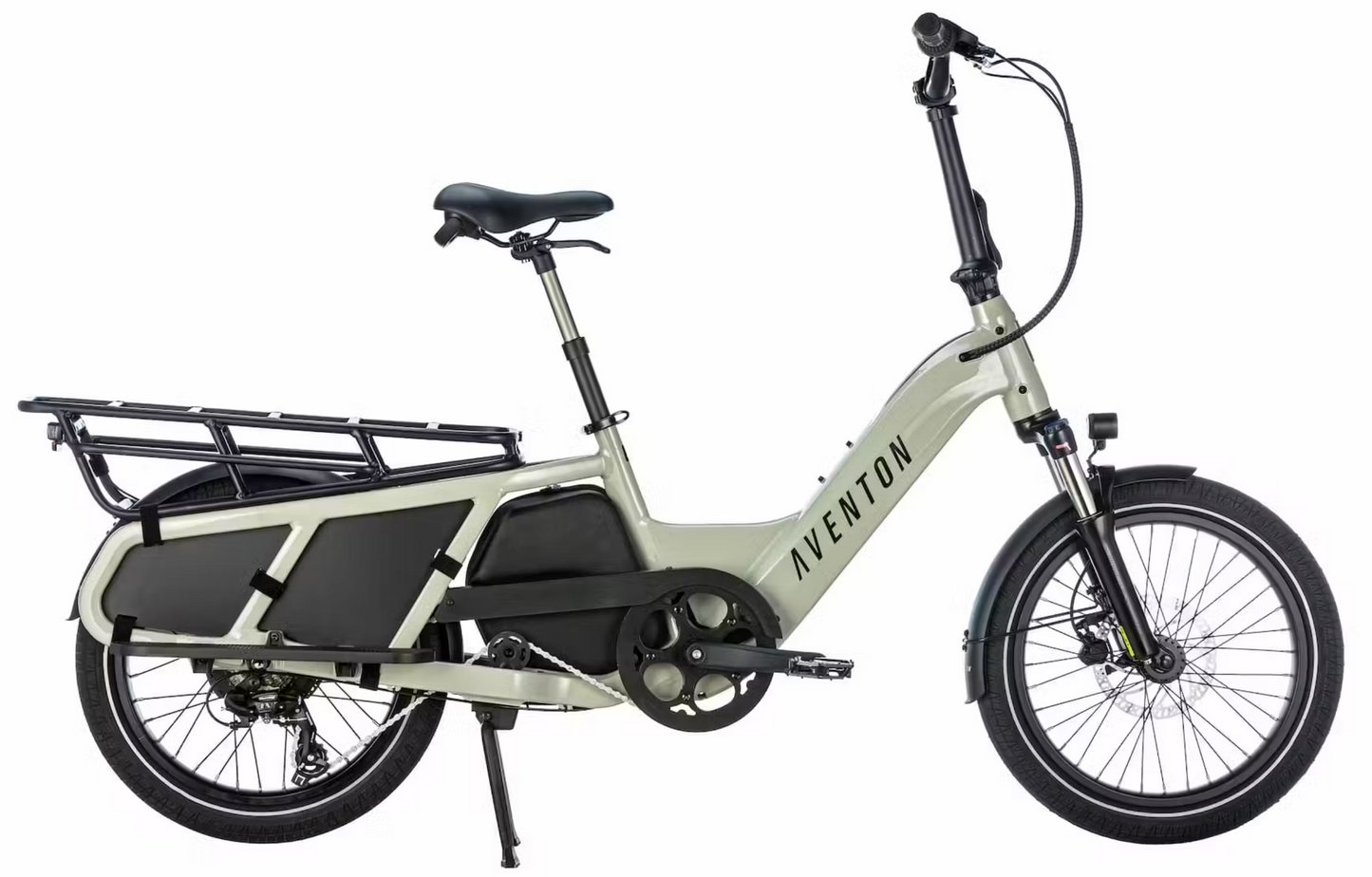

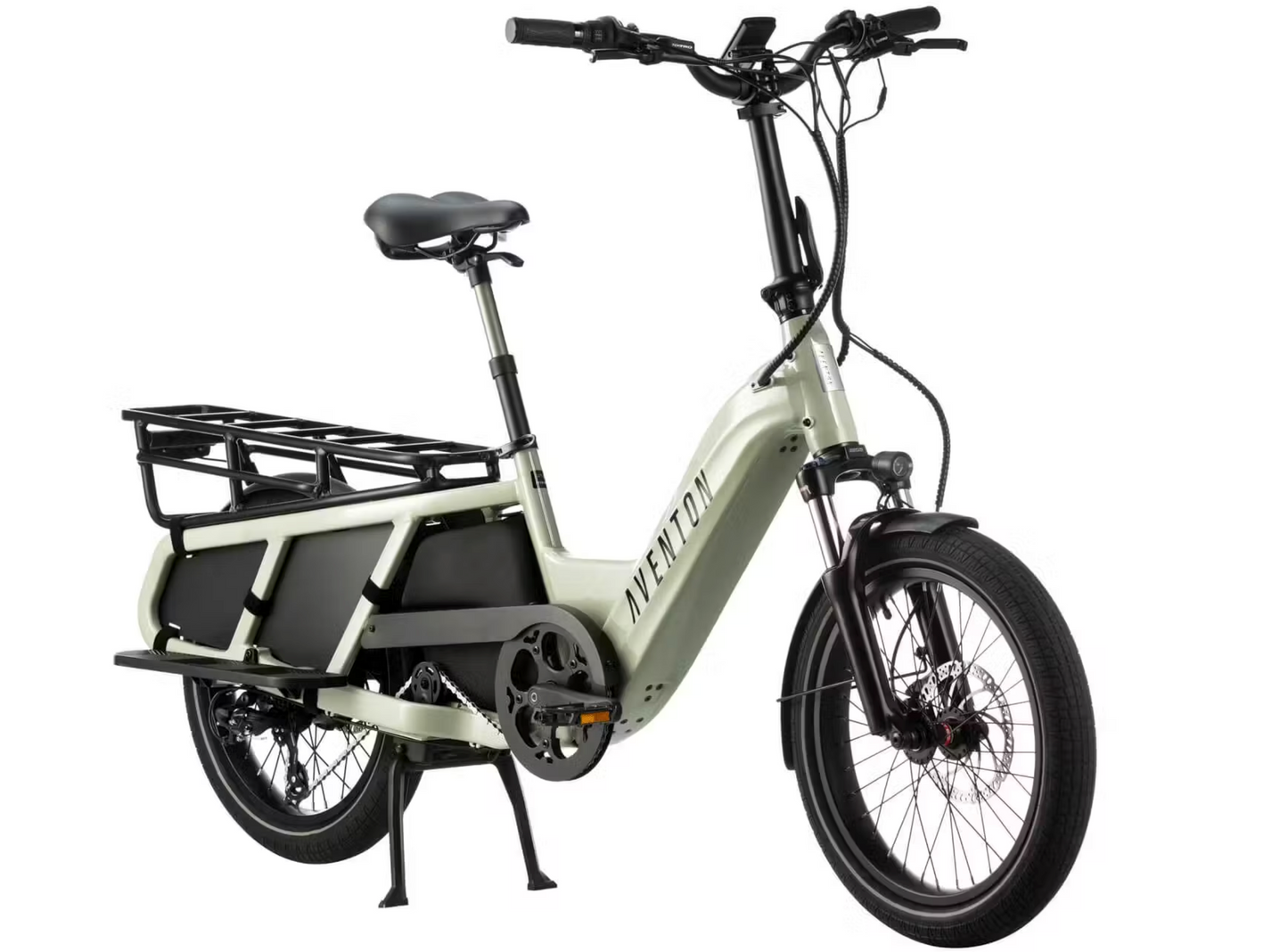

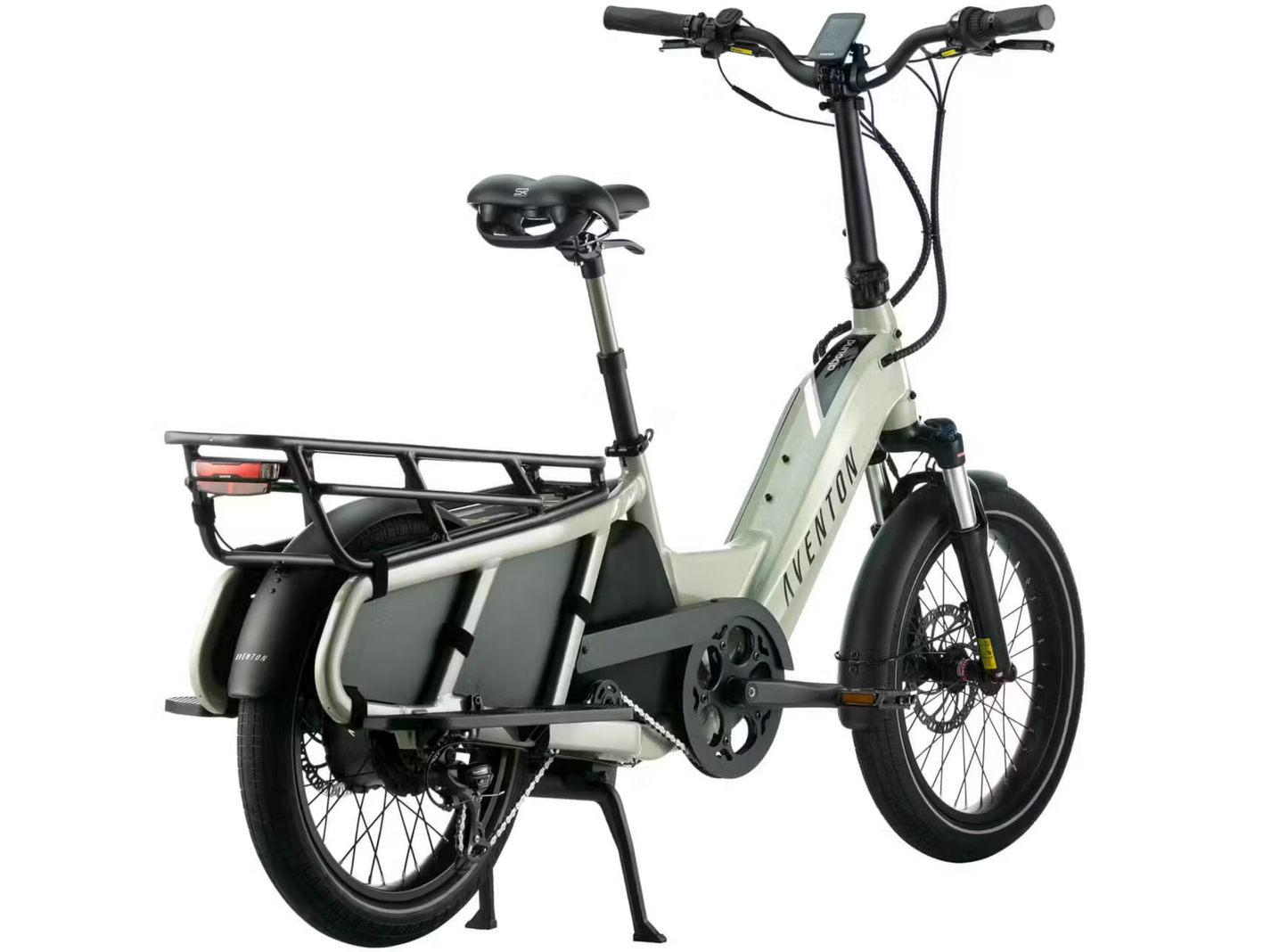

Aventon Abound

General Info

• Model: Aventon Abound Ebike
• Speed: 20 MPH
• Pedal Assist: 4 Levels
• Range: Up to 50 miles
• Weight: 81 lbs
• Total Weight Limit: 440 lbs
• Ideal Use: Cargo
• Folding: No
• Rider Height: 4'11" - 6'3"

Frameset

• Frame: Double-Butted Aluminum Alloy
• Fork: Suspension Fork with 50mm travel, with lockout
• Footboards: Aluminum
• Frame Style: Step-Through

Wheelset

• Rim: Double Wall Aluminum 36h Front & Rear
• Tubes: Butyl Rubber, Schrader Valve
• Hubs: Hubs: 36H Disc Nutted Front, Nutted Rear
• Tires: 20 x 2.4
• Spokes: Black Stainless 13G Front / 12G Rear

Ebike System

• Motor: 750w (sustained), 48v Rear Hub
• Throttle: Throttle on demand
• Display: LCD Smart "Easy Read"
• Battery: 48V, 15Ah (720Wh), LG Cell, UL 2849 Compliant
• Sensors: Torque Sensor
• Charger: 48V, 3 Amp Fast Charger
• Lights: Front and rear lights integrated

Brakes

• Brakes: Hydraulic

Drivetrain

• Pedals: 9/16" Alloy Platform
• Bottom Bracket: Square Taper, Sealed, Torque Sensor
• Crankset: 170mm w/ 52 T
• Rear Derailleur: Shimano 7 speed
• Cassette: 14-28T, 7 Speed
• Shift Lever: 7 Speed Twist
• Chain: 148 Link, 7 Speed

Cockpit

• Saddle: Aventon Saddle
• Seatpost: Dropper Seatpost, 30.9mm x 440mm
• Stem: Folding, Height Adjustable, 31.8mm, 9 Degree Rise
• Seat Clamp: 34.9mm Quick Release
• Handlebars: Aluminum 31.8mm, 700mm
• Headset: Sealed Bearing Headset
• Grips: Ergonomic Comfort

Miscellaneous

• Dimensions: Bike Box: 167cm x 37cm x 73cm
• Suspension: Front

Included Accessories

• Kickstand: Included, center mount
• Storage Bag: Polyester, EVA Waterproof
• Rear Rack Weight Limit: 143 lbs
• Fenders: Included
• Rear Rack: Included
