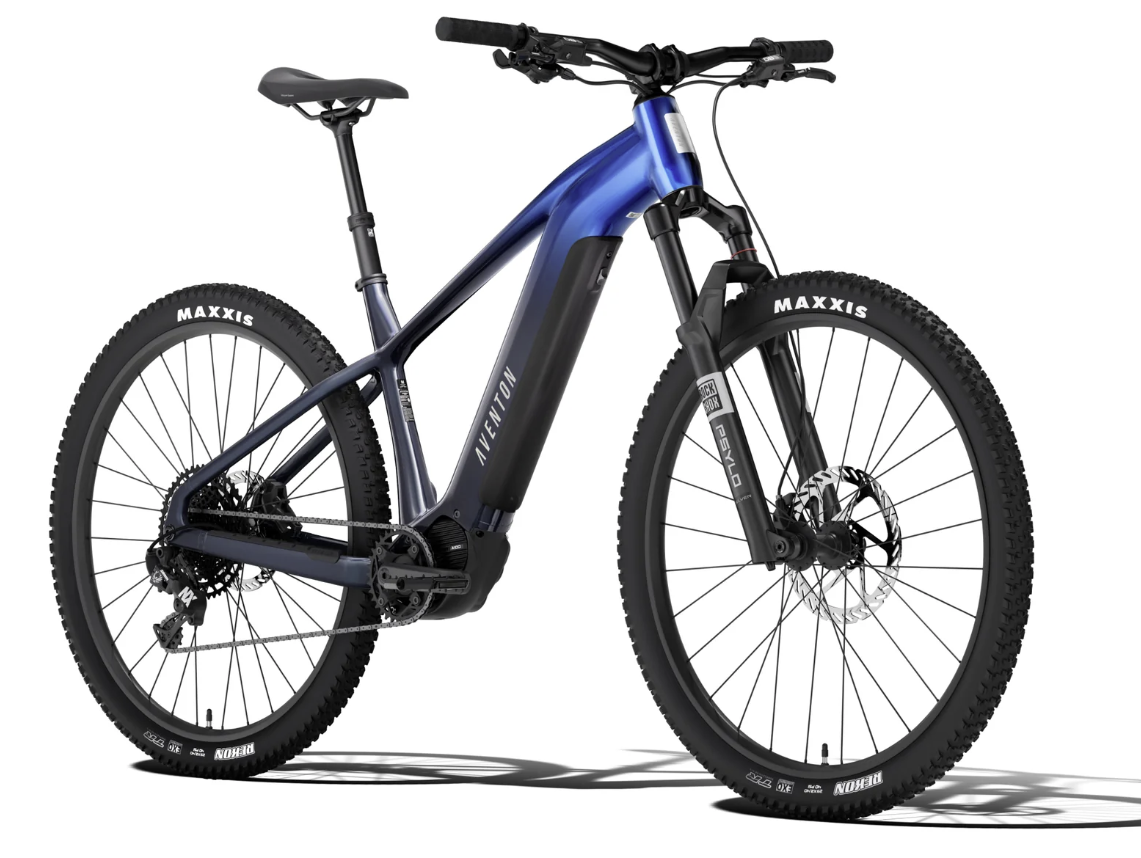

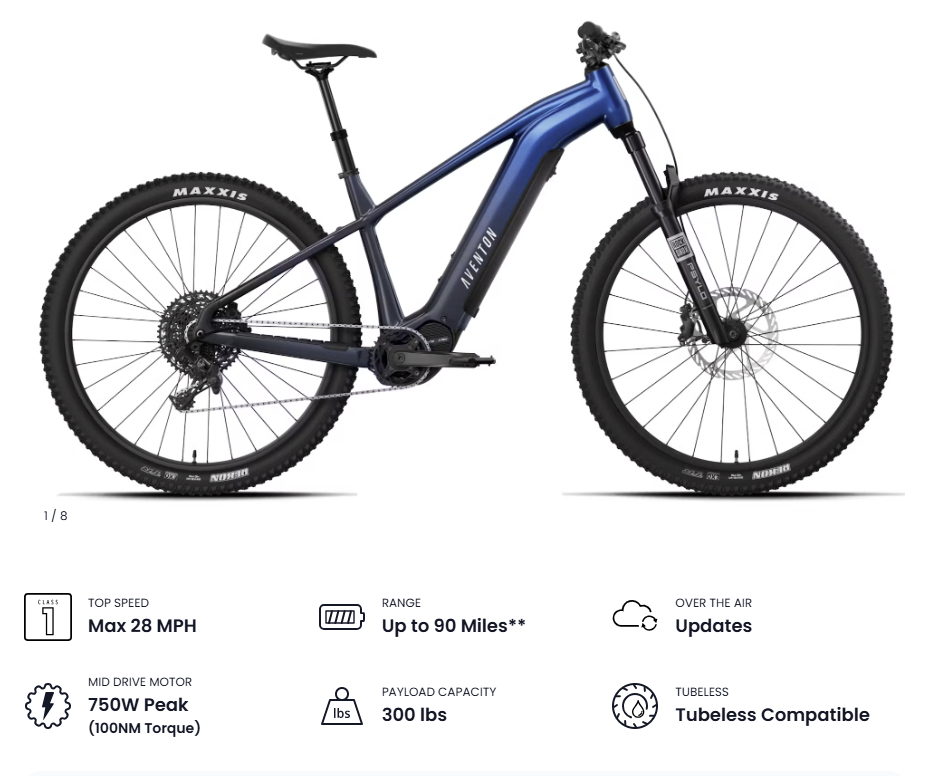

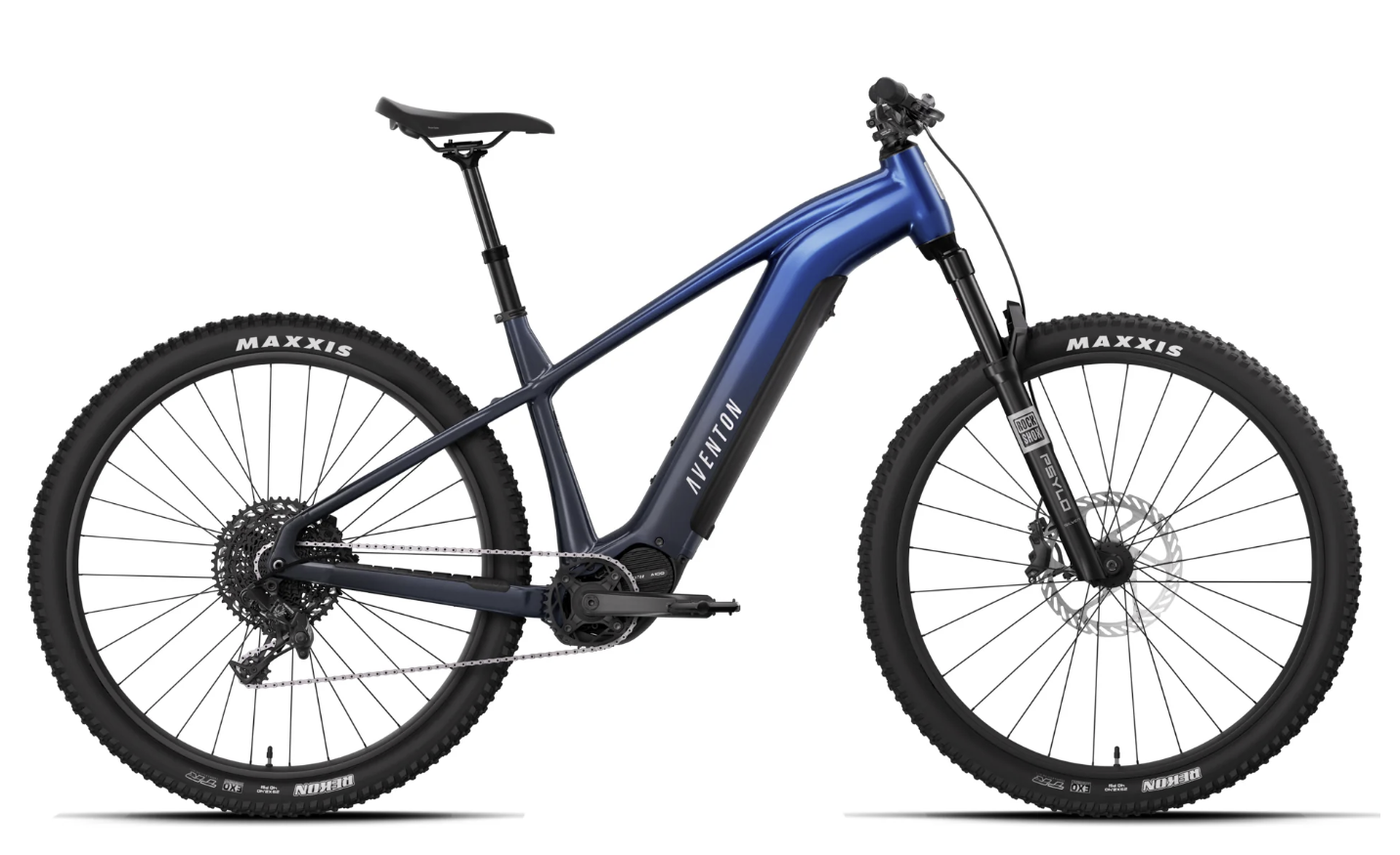

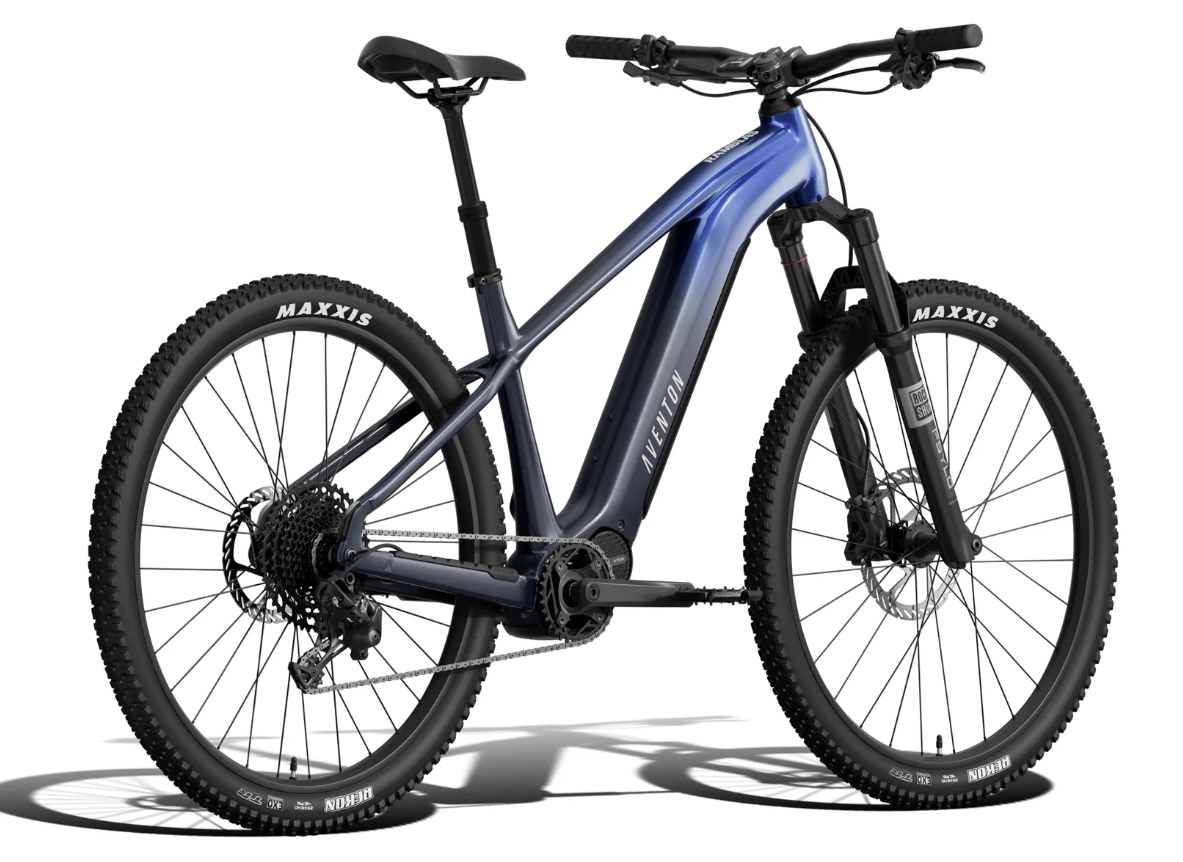

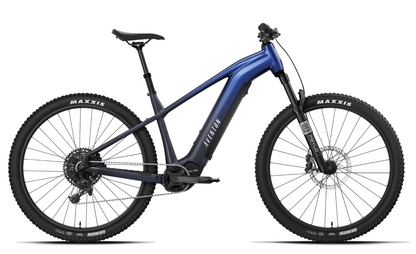

AVENTON Ramblas ADV

Technical Specifications

General Information

• Model — Ramblas ADV Ebike • Weight — 54 lbs • Total Weight Limit — 300 lbs • Rider Height — 5'5"–6'5" • Box Size — 59 x 13 x 36 in • Water Resistance — Bike IPX6 / Motor IP67 • Range — Up to 90 miles • Bike Safety Certifications — TÜV Certified (UL 2849 / UL 2271) • Battery Safety Certifications — TÜV Certified (UL 2849 / UL 2271) • Ideal Use — Mountain biking, urban riding

Frameset

• Frame — 6061 single‑butted aluminum alloy • Fork — RockShox Psylo Silver R, 35mm stanchions, coil, 44mm offset, 15x110mm BOOST, tapered steerer tube, rebound adjust • Rear Spacing — 12x148mm • Front Spacing — 15x110mm • Frame Style — Step‑over

Wheelset

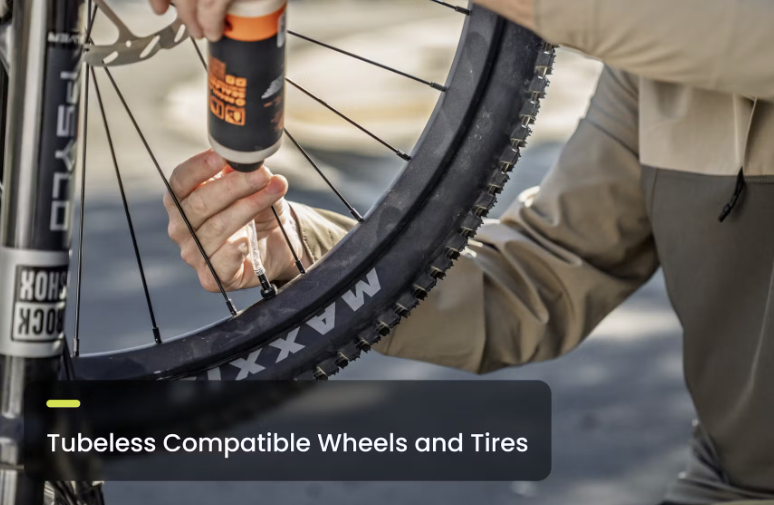

• Rear Wheel — 29", 32‑hole, BOOST thru‑axle, Presta valve, tubeless‑ready • Front Wheel — 29", 32‑hole, BOOST thru‑axle, Presta valve, tubeless‑ready • Tires — Maxxis Rekon 29" x 2.4", tubeless‑ready

E‑Bike System

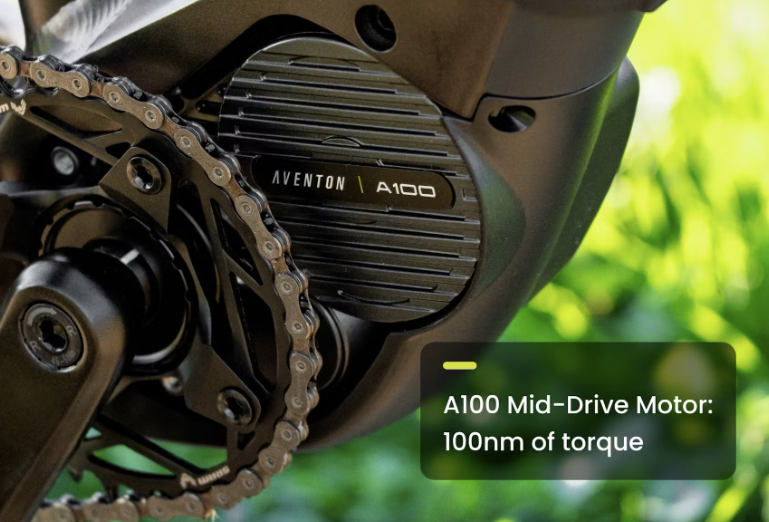

• Speed Class — Class 1 • Motor — Aventon A100 mid‑drive, 36V, 250W sustained / 750W peak, 100Nm torque • Motor Torque — 100Nm • Motor Power — 250W (750W peak) • Display — Aventon BC201 • Battery — Aventon 708Wh, 36V LG 21700 cells • Battery Weight — 8.44 lbs • Throttle — Not included • Sensors — Dual‑sided torque sensor integrated in motor • Charger — 42V 4A • Charging Time — About 5 hours • Lights — Integrated

Brakes

• Front Brake — SRAM DB6, 4‑piston hydraulic disc • Rear Brake — SRAM DB6, 4‑piston hydraulic disc • Front Rotor — SRAM G2, 200mm • Rear Rotor — SRAM G2, 200mm

Drivetrain

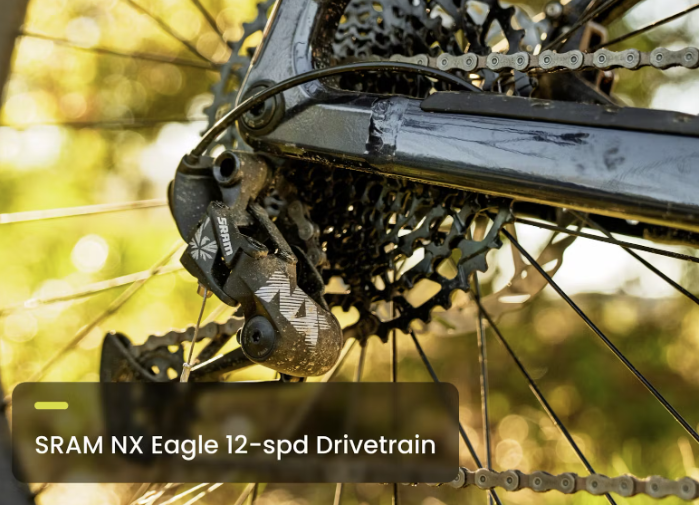

• Rear Derailleur — SRAM NX, 12‑speed • Shifter — SRAM NX • Chain — SRAM 12‑speed • Cassette — SRAM SX 12‑speed, 10–50T • Chainring — SRAM 34T • Chainring BCD — 104 • Crankset — 165mm ISIS‑splined • Bottom Bracket — N/A • Pedals — 9/16" alloy platform

Cockpit

• Saddle — Aventon saddle • Seatpost — Manic LC, 150mm travel (sizes M–XL), 31.6mm diameter, 395mm length • Seatpost Clamp — 34.9mm • Handlebars — 760mm width, 35mm clamp, 33mm rise, 3° upsweep, 9° backsweep • Grips — Aventon lock‑on grips • Headset — T51Ks 28.656‑5639.8 / height 23.4mm

Included Accessories

• Kickstand — Included • Lights — Included • Fenders — Compatible • Rear Rack — Compatible

Technical Overview

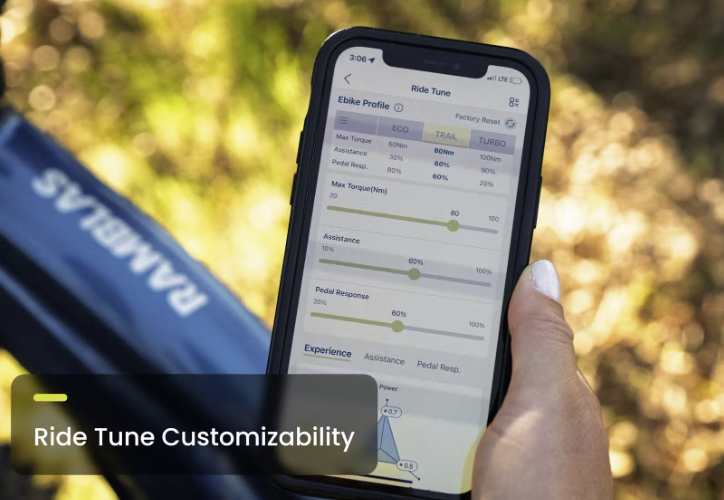

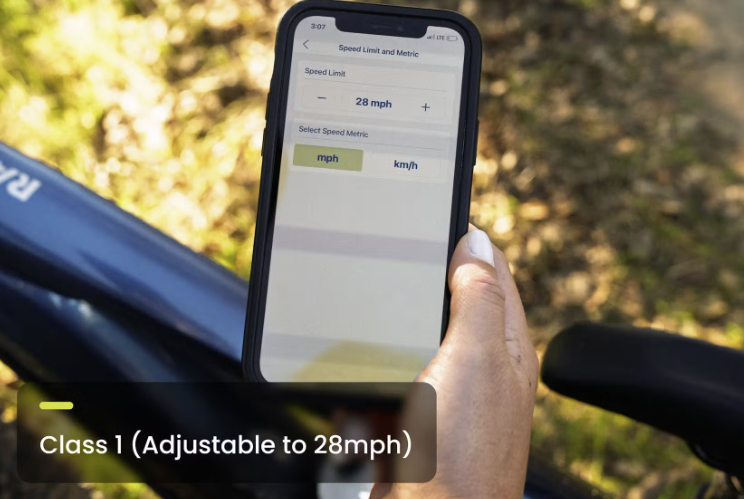

• Class — Ships as Class 1 pedal‑assist • Adjustability — Can be set to Class 3 via Aventon MyRide app • Throttle — Not compatible • Waterproof Rating — IP67
