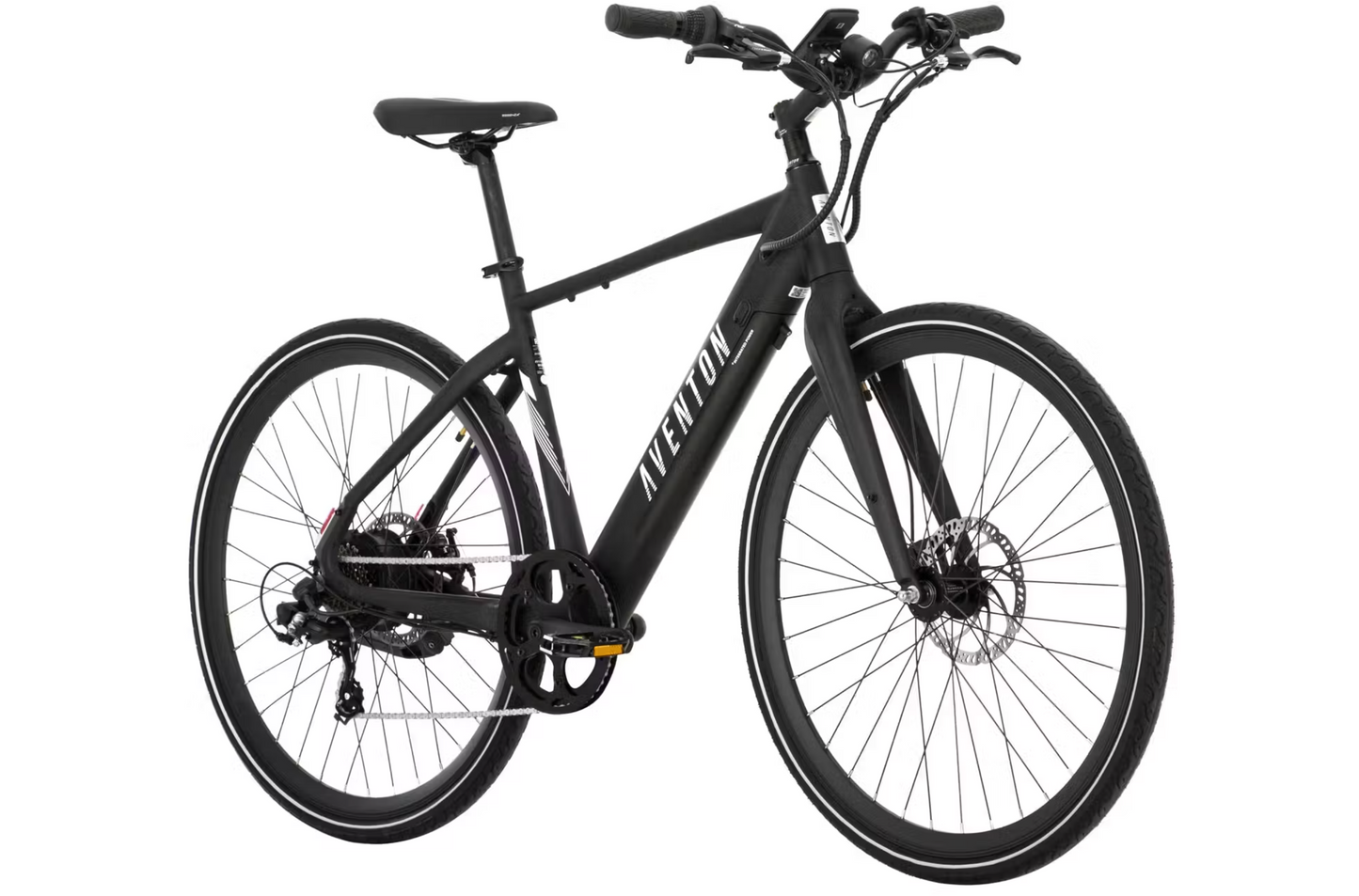

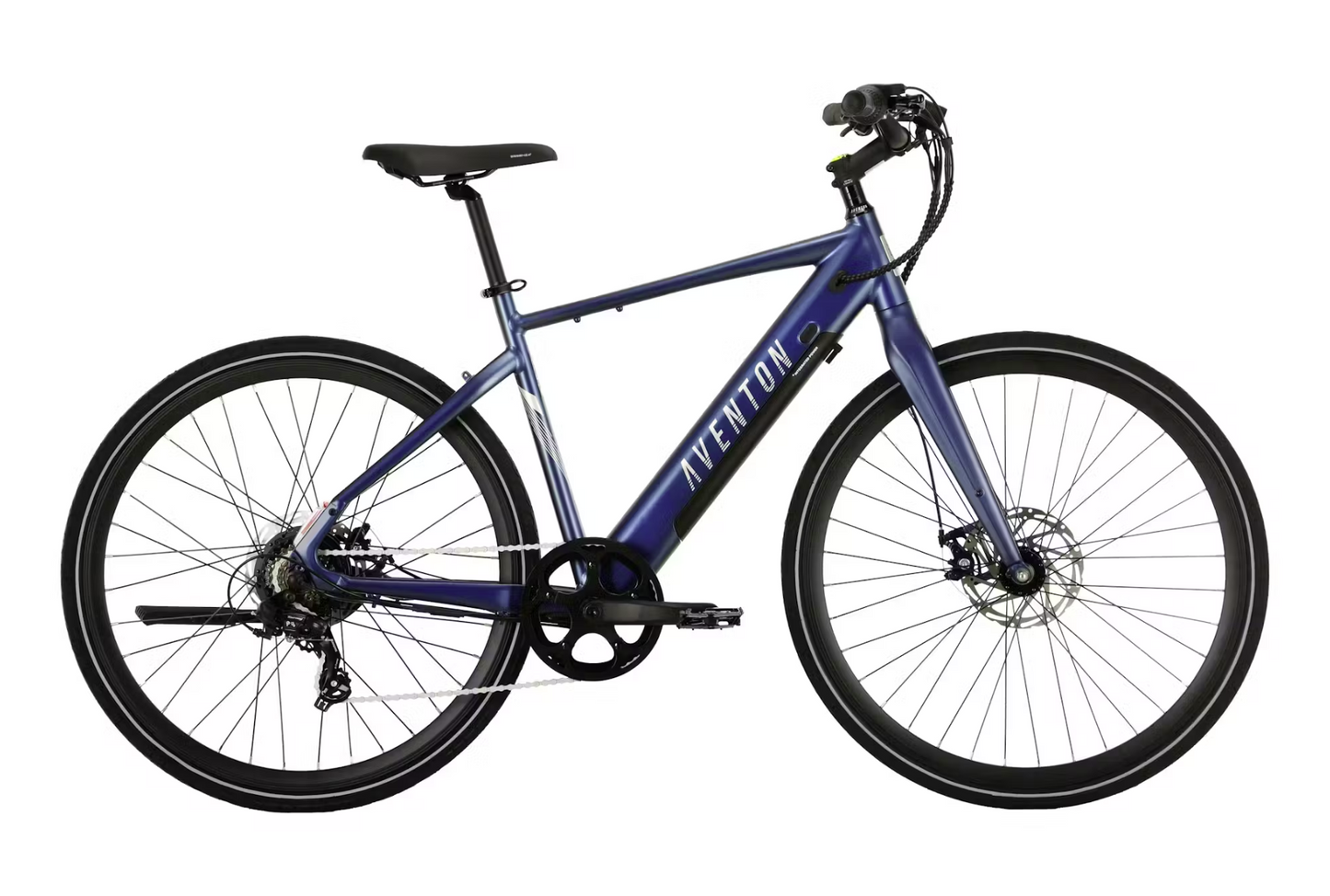

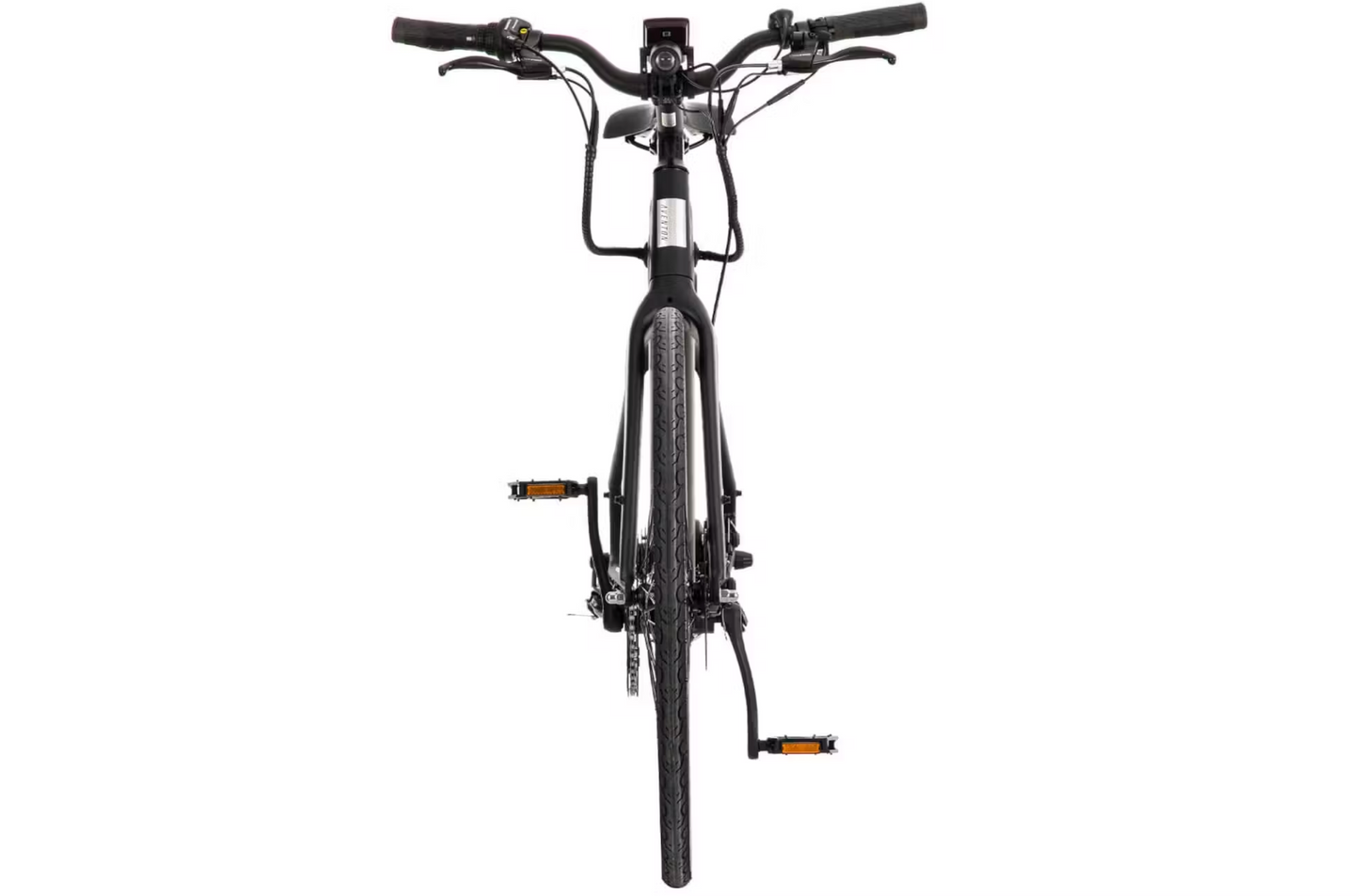

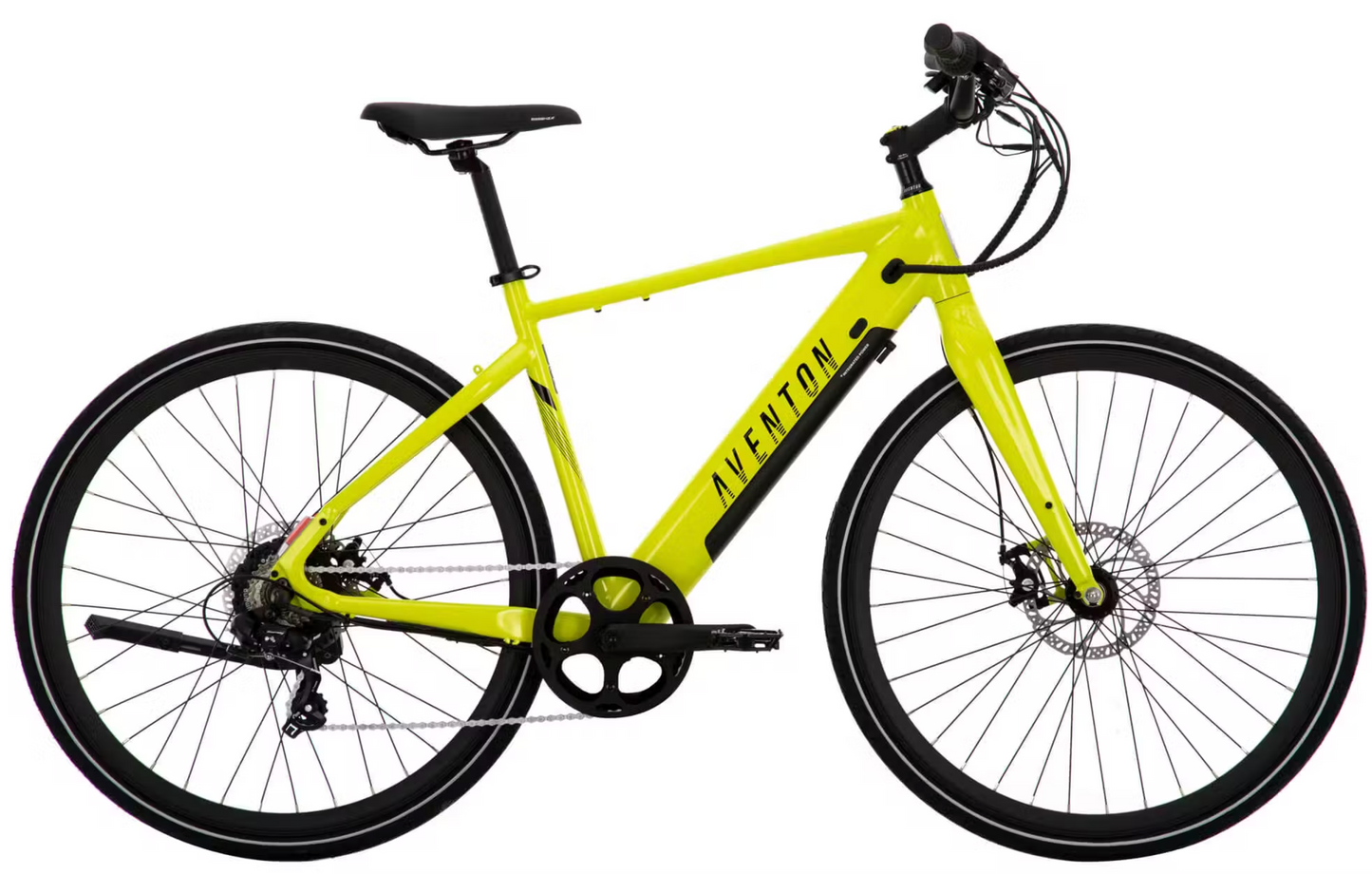

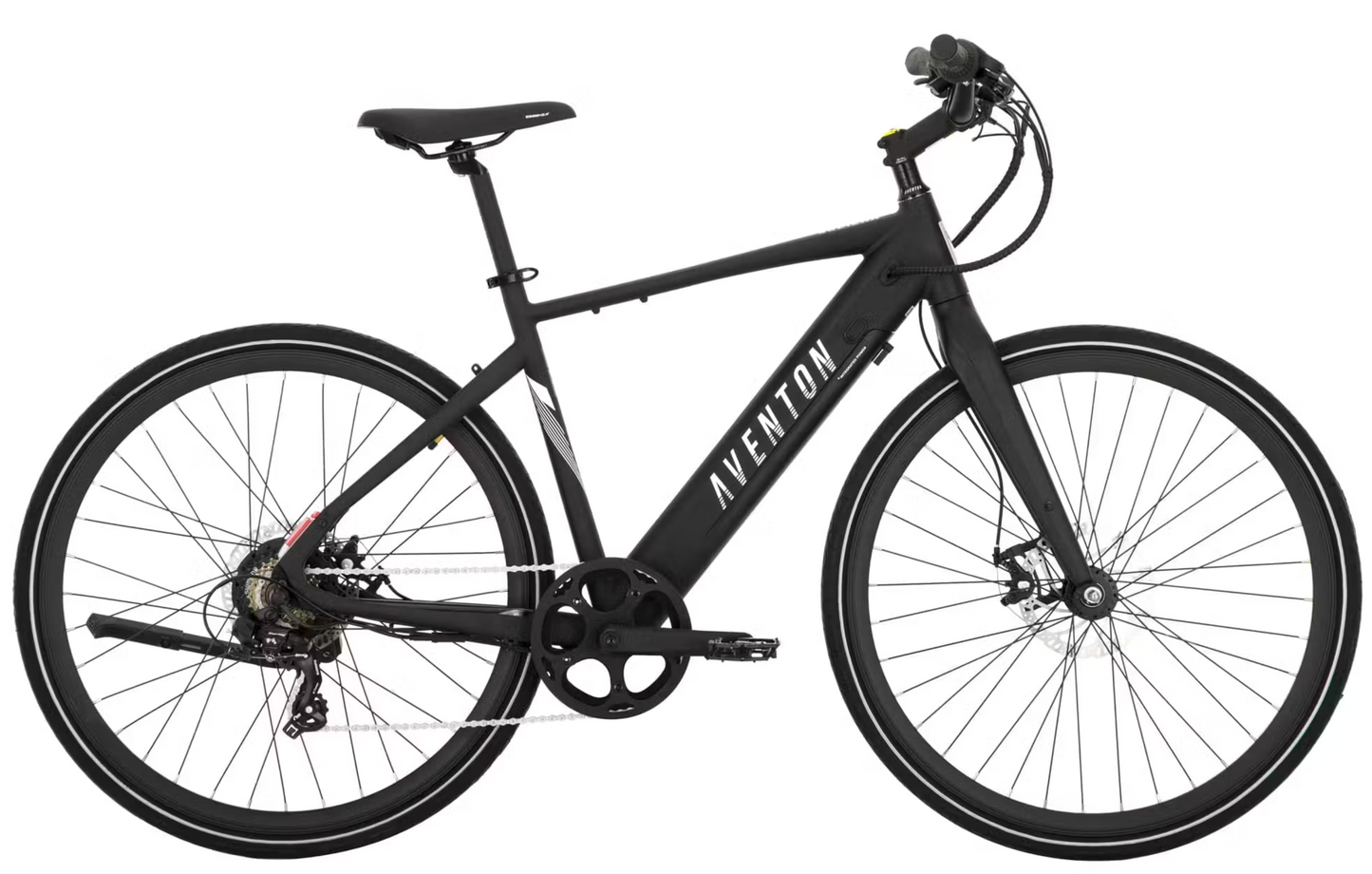

Aventon Soltera.2

General Info

• Model: Aventon Soltera.2 Ebike
• Ideal Use: Urban Riding
• Folding: No
• Rider Height: 5'3" - 6'4"
• Dimensions (Bike Box): 140 x 27 x 73 cm

Performance

• Speed: 20 MPH
• Pedal Assist: 4 Levels
• Range: Up to 46 Miles
• Weight: 46 lbs
• Total Weight Limit: 300 lbs

Frameset

• Frame: Single-Butted Aluminum Alloy
• Frame Style: Step-Over
• Fork: AE-E09 Soltera AL fork

Wheelset

• Rim: Aluminum 36h Front & Rear
• Spokes: Black Stainless 13G Front / 12G Rear
• Tubes: Butyl Rubber, Schrader Valve
• Hubs: Hubs: 36H Disc Nutted Front, Nutted Rear
• Tires: 700c x 38c Kenda

Ebike System

• Motor: 350w, 36v
• Throttle: Throttle on demand
• Display: LCD Smart "Easy Read"
• Battery: 36V, 9.6Ah, LG Cell, UL 2849 Compliant
• Sensors: Torque Sensor
• Charger: 36V, 2 amp
• Lights: Front and rear lights integrated

Brakes

• Brakes: Mechanical

Drivetrain

• Bottom Bracket: Square Taper, Sealed, Torque Sensor
• Pedals: Platform
• Crankset: 170mm w/ 48 T
• Rear Derailleur: Shimano 7 speed
• Shift Lever: 7 Speed Twist
• Chain: 100 Link, 7 Speed
• Cassette: 14-28T, 7 Speed

Cockpit

• Saddle: Aventon by SelleRoyal
• Seatpost: Forged Alloy, 27.2mm, 2-Bolt Clamp
• Stem: Threadless, 31.8mm, 7 Degree Rise
• Seat Clamp: 34.9mm Quick Release
• Handlebars: Aluminum 31.8mm, 620mm
• Headset: Sealed Bearing Headset
• Grips: Ergonomic Comfort

Optional Accessories

• Fenders
• Rear Rack

Miscellaneous

• Suspension: None

Included Accessories

• Kickstand: Included, rear mount
