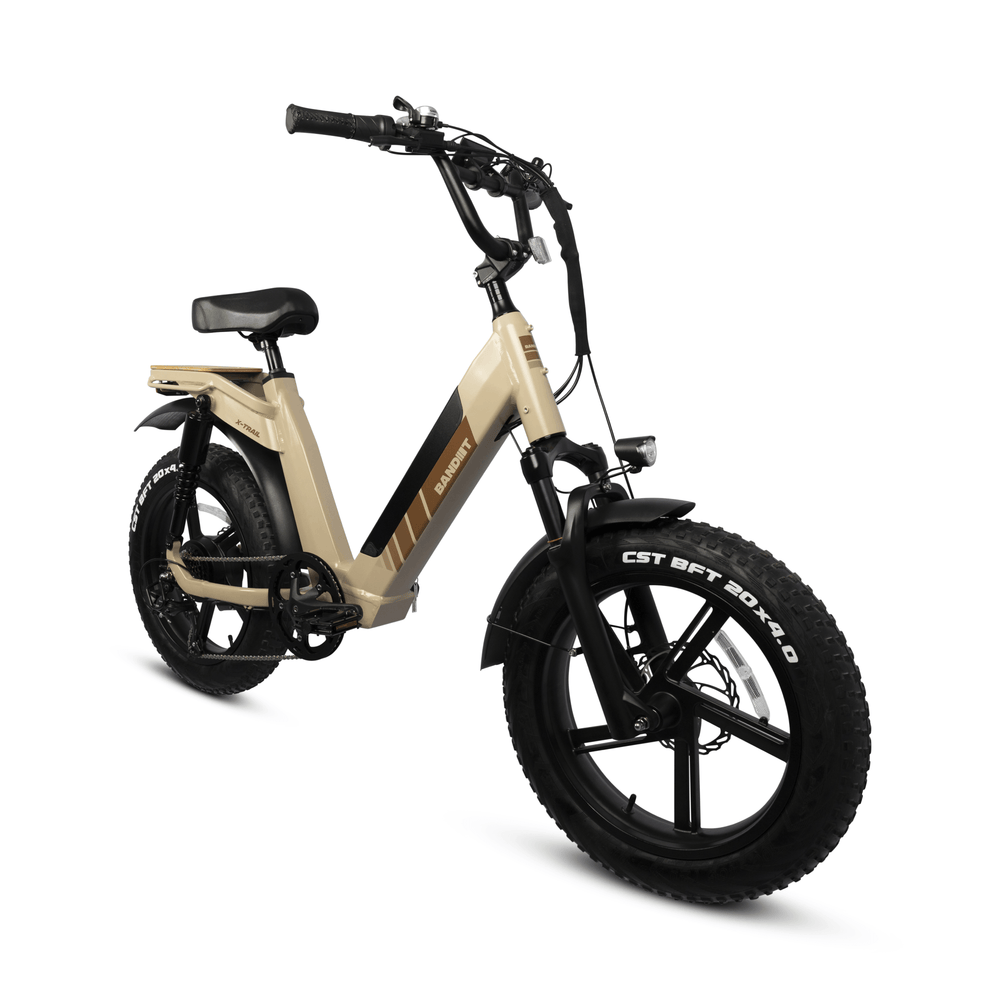

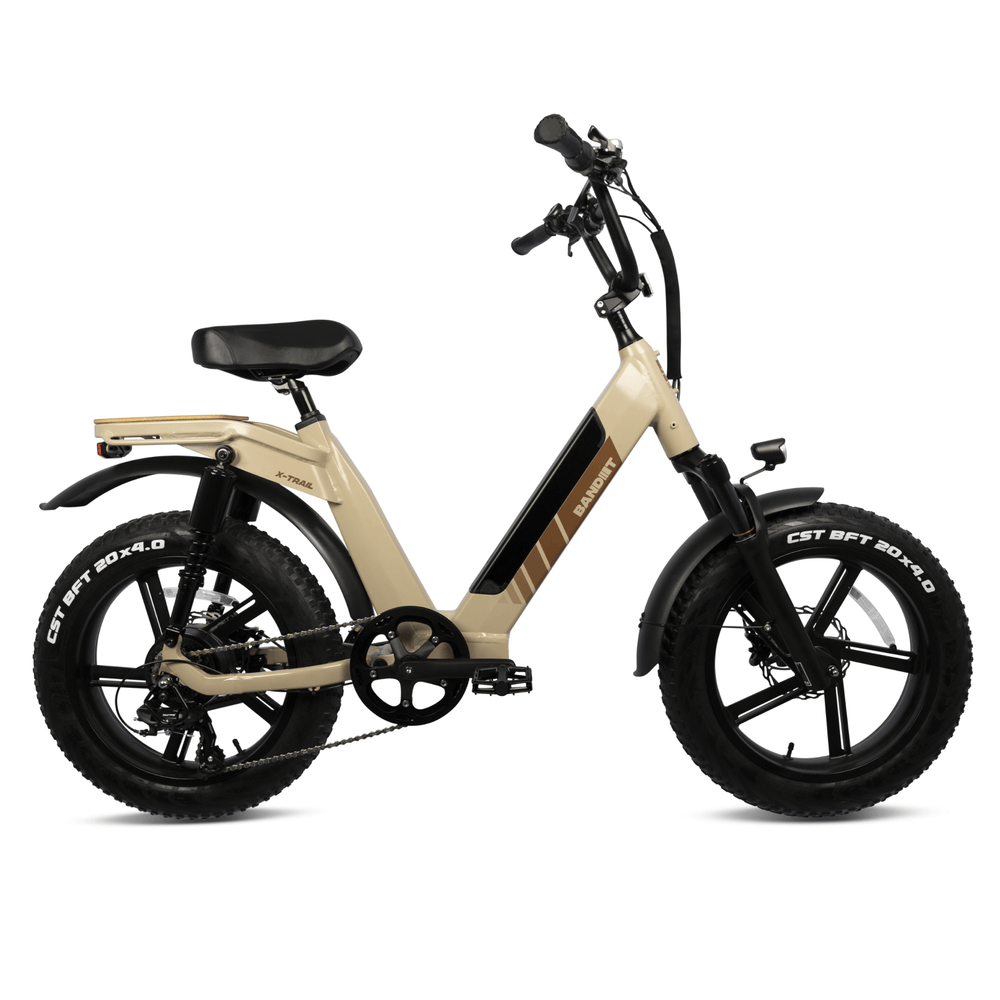

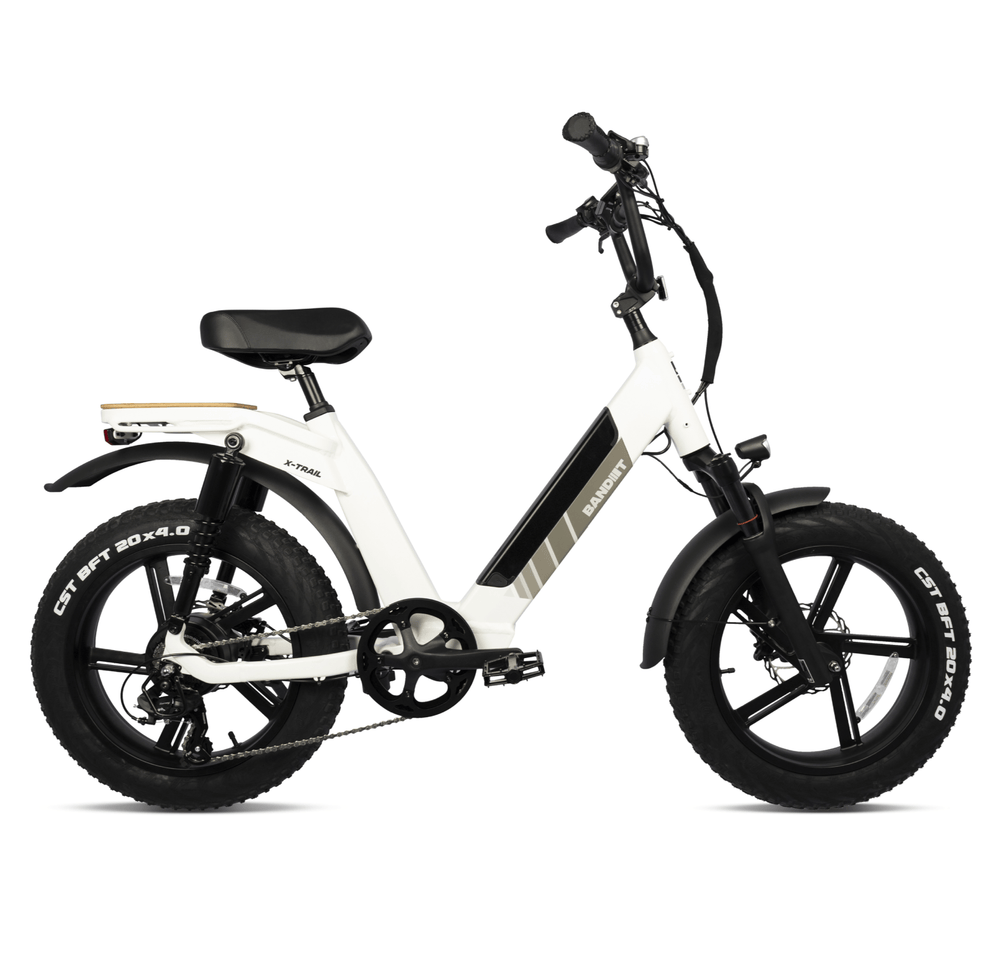

Bandit X Trail Lite
Bandit X Trail Lite
Couldn't load pickup availability
Technical Specifications
Technical Specifications
Range
Battery (wH)
696 wH Battery
Charging Time
6 Hrs
Top Speed
28+ MPH
Charger
ST 48V 2Amp
Motor Power (W)
750 W 75N.M Torque
Controller (V, W)
48V 750W 20A
Throttle Style
Half twist throttle
Display Type
Horizontal LCD Smart Color Display
Pedal Assist
6 Levels
USB Ports
YES
Wiring
Water resistant connectors and wiring harness
Components
Frame
6061 Aluminum
Fork
Steel Fork with 80mm travel for 20'' Tire
Handlebar
6061 Alloy Handlebar
Stem
50 mm + 30º
Grips
Velo Rubber Ergo Grips
Bell
Zoom Integrated Bell
Rims
Bandit Bikes 12G 5 Spoke Rims
Tire Hub
Bandit Bikes Loose Ball 12G, 36H Rear Tire Hub
Tire Spokes
None
Tires
20'' x 4'' Puncture Resistant Tire
Fenders
Full coverage front and rear fenders with hardware included
Brake Levers
Aluminum alloy levers with motor cutoff switch
Brake Calipers
Hydraulic Calipers
Brake Rotors
180 mm front and rear
Brake Pad Materials
Metallic
Crank Set
48T, 165mm crank length; square-taper; dual-sided aluminium chainring guard
Freewheel
DNP 8 Speed Freewheel 11-32T
Chain
KMC Z7
Gearing
1 x 7-speed
Shifter
7 Speed Shimano Right Shift Lever
Derailleur
7 Speed Shimano Tourney
Saddle
Large Plush Bicycle Seat
Seatpost Dimensions
31.6 x 400mm
Seatpost Clamp
Bolt on
Pedals
111 mm x 105 mm boron steel axel, Standard 9/16″ thread with reflectors
Kickstand
Heavy-duty aluminum with wide plastic foot
Front Light
Waterproof front LED headlight
Tail Light
Rear integrated lights
Rear Rack
YES
Sensor
Cadence Sensor
What's in the box?
What's in the box?
Included Accessories: Kickstand, Charger
The Bandit X Trail Lite features a 696 wH battery and a quick 6 hour charging time. It also boasts a top speed of over 28 MPH and a 750 W motor with 75N.M torque. The controller is 48V 750W 20A and the throttle style is a half twist throttle. The horizontal LCD display is a smart color display that showcases a total of 6 pedal assist levels, as well as USB ports. The wiring features water resistant connectors and a wiring harness. The durable components include a 6061 aluminum frame, steel fork with 80mm travel, and 6061 alloy handlebars. The 50mm + 30º stem, Velo rubber ergo grips, and Zoom integrated bell complete the sleek design. The rims are 12G 5 spoke from Bandit Bikes, and the tires are 20'' x 4'' puncture resistant. Full coverage front and rear fenders with hardware are also included
Bandit
Share
Size Guide
-
Weight
77 lbsReach
21.6’’Stack
21.7’’Minimum Seat Height
32"Max Seat Height
41.7’’Seat Tube Length
16’’Total Length
58’’Handlebar Height
45.7’’Standover Height
15.2’’Min Rider Height
4’11’’Max Rider Height
6’4’’Max Load Capacity
440 lbs
