Bandit X Trail Urban
Bandit X Trail Urban
Couldn't load pickup availability
Technical Specifications
Technical Specifications
Range:
- Battery (wH): 720 wH Battery
- Charging Time: 5 Hrs
- Top Speed: 28+ MPH
- Charger: MDA 48V 2Amp
- Motor Power (W): 750 W 75N.M Torque
- Controller (V, W): 48V 750W 18A
- Throttle Style: Thumb Throttle
- Display Type: Horizontal LCD Smart Color Display
- Pedal Assist: 6 Levels
- USB Ports: YES
- Wiring: Water-resistant connectors and wiring harness
Components:
- Frame: 6061 Aluminum
- Fork: Aluminum Fork for 26'' Tire
- Handlebar: 6061 Alloy Handlebar
- Stem: 50 mm + 30º
- Grips: Velo Rubber Ergo Grips
- Bell: Xinxing Integrated Bell
- Rims: 26'' 36 Hole
- Tire Hub: KT Loose Ball 12G, 36H, 145L/QR154L
- Tire Spokes: 12 Gauge, Stainless Steel
- Tires: 26'' x 4'' Puncture Resistant Tire
- Fenders: Full coverage front and rear fenders with hardware included
- Brake Levers: Aluminum alloy levers with motor cutoff switch
- Brake Calipers: Hydraulic Calipers
- Brake Rotors: 180 mm front and rear
- Brake Pad Materials: Metallic
- Crank Set: 48T, 170mm crank length, dual-sided aluminum chainring guard
- Freewheel: Shimano 7 Speed Freewheel 14-28T
- Chain: KMC Z8.3
- Gearing: 1 x 7 Speed
- Shifter: 7 Speed Shimano Right Shift Lever
- Derailleur: 7 Speed Shimano Tourney
- Saddle: Large Plush Bicycle Seat
- Seatpost Dimensions: 31.6 mm x 400 mm
- Seatpost Clamp: Bolt on
- Pedals: 111 mm x 105 mm boron steel axle, Standard 9/16″ thread with reflectors
- Kickstand: Heavy-duty aluminum with wide plastic foot
- Front Light: Waterproof front LED headlight
- Tail Light: Rear integrated lights
- Rear Rack: YES
- Sensor: Cadence Sensor
What's in the box?
What's in the box?
Included Accessories: Kickstand, Charger
The Bandit X Trail Urban comes equipped with a powerful 750 W motor and 720 wH battery that charges in just 5 hours. With a top speed of over 28 MPH, this electric bike is perfect for urban adventures. The MDA 48V 2Amp charger, 6 levels of pedal assist, and thumb throttle make it easy to control and ride. Its aluminum frame, handlebar, and fork provide smooth and sturdy handling, while the 26'' tires and full coverage fenders ensure a comfortable and safe ride. Additional features such as USB ports, water-resistant wiring, and a rear rack make this electric bike the ultimate city companion.
Bandit
Share

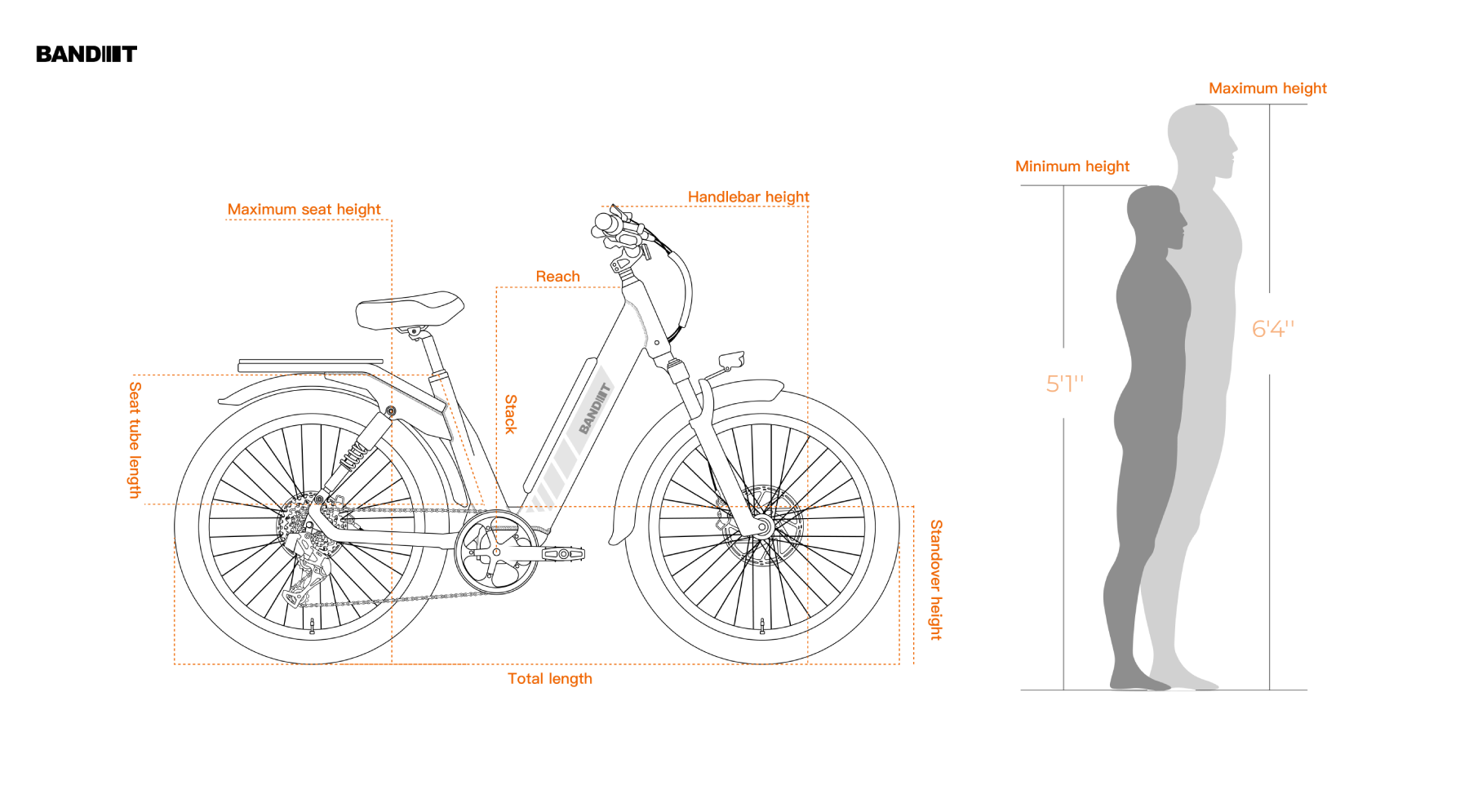

Size Guide
-
Weight: 88 lbs
Reach: 17’’
Stack: 27.7’’
Minimum Seat Height: 34"
Maximum Seat Height: 43.7’’
Seat Tube Length: 16’’
Total Length: 76"
Handlebar Height: 45.5’’
Standover Height: 16’’
Minimum Height: 5'1’’
Maximum Height: 6’6’’
Maximum Load: 440 lbs
