Technical Specifications
Technical Specifications
Frame & Tires
- Material: 6061 Aluminum Alloy
- Tire Size: 20 x 4.0 Inches
Powertrain
- Motor: 1000w (peak) High-Speed Brushless Motor
- Torque: 65 N.m
- Battery Options:
- Speed: 0-31 MPH
- Mileage (Electric Mode): 47 Miles
- Charging Time: About 7h
Components
- Maximum Climbing Degree: 30°
- Brakes: Hydraulic Disc Brakes
- Hub & Power: Integrated Hub Motor with 750W power
- Transmission System: Shimano 8 Gears
Weights & Capacity
- Bike Weight: 82.0 lbs (37.2 kg)
- Gross Weight: 102.1 lbs (46.32 kg)
- Maximum Load: 330lbs (150 kg)
- Rider Heights: 5.4~6.2ft (165-190 cm)
What's in the box?
What's in the box?
- 48V 7.8Ah Battery (x1)
- Battery Charger (x1)
- Assembly Tools (x1)
- Pedals (x2)
- Handle Bars (shipped installed)
- English User Manual (x1)
- English Display Manual (x1)
- Tool Kit (x1)

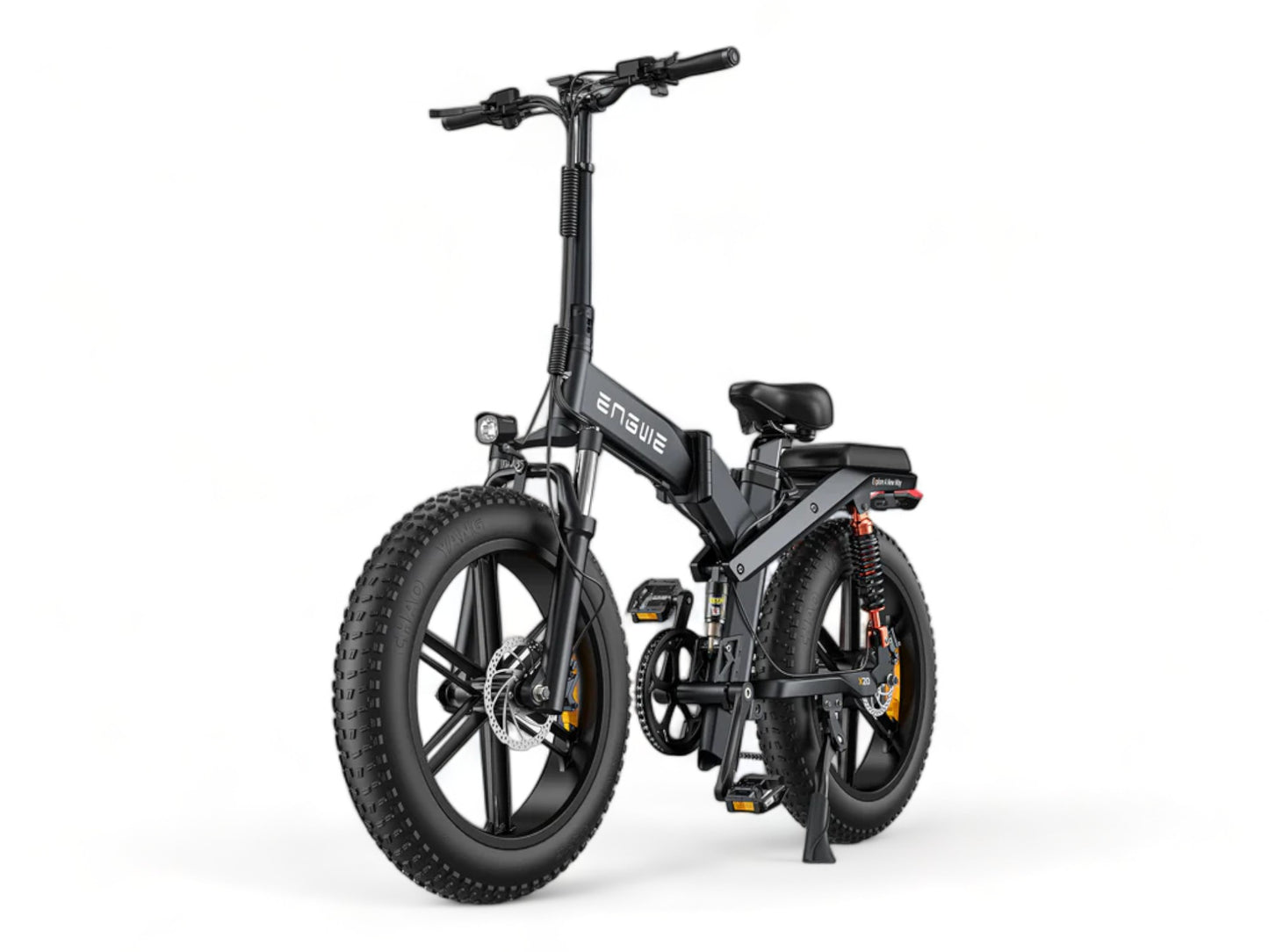

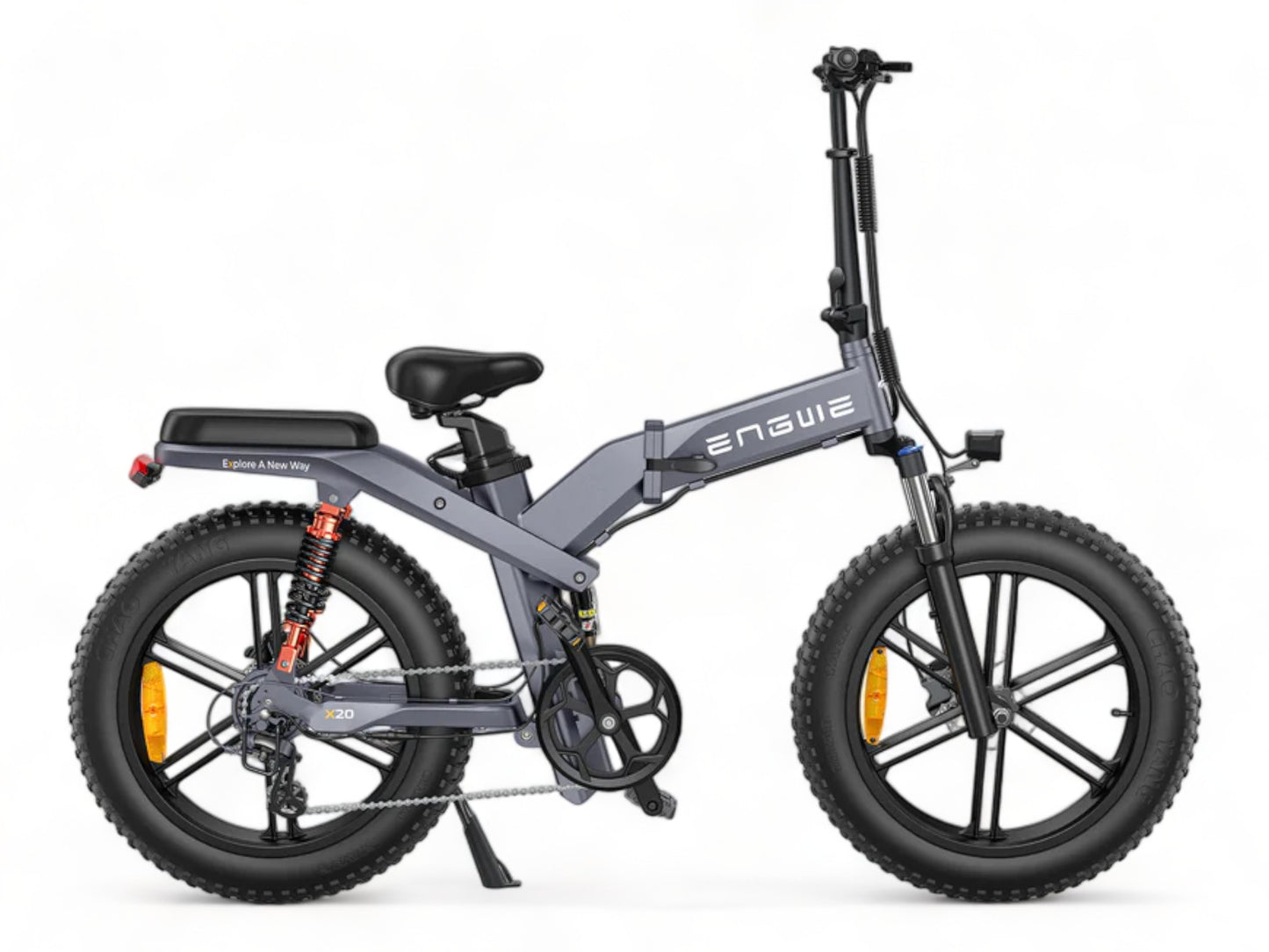

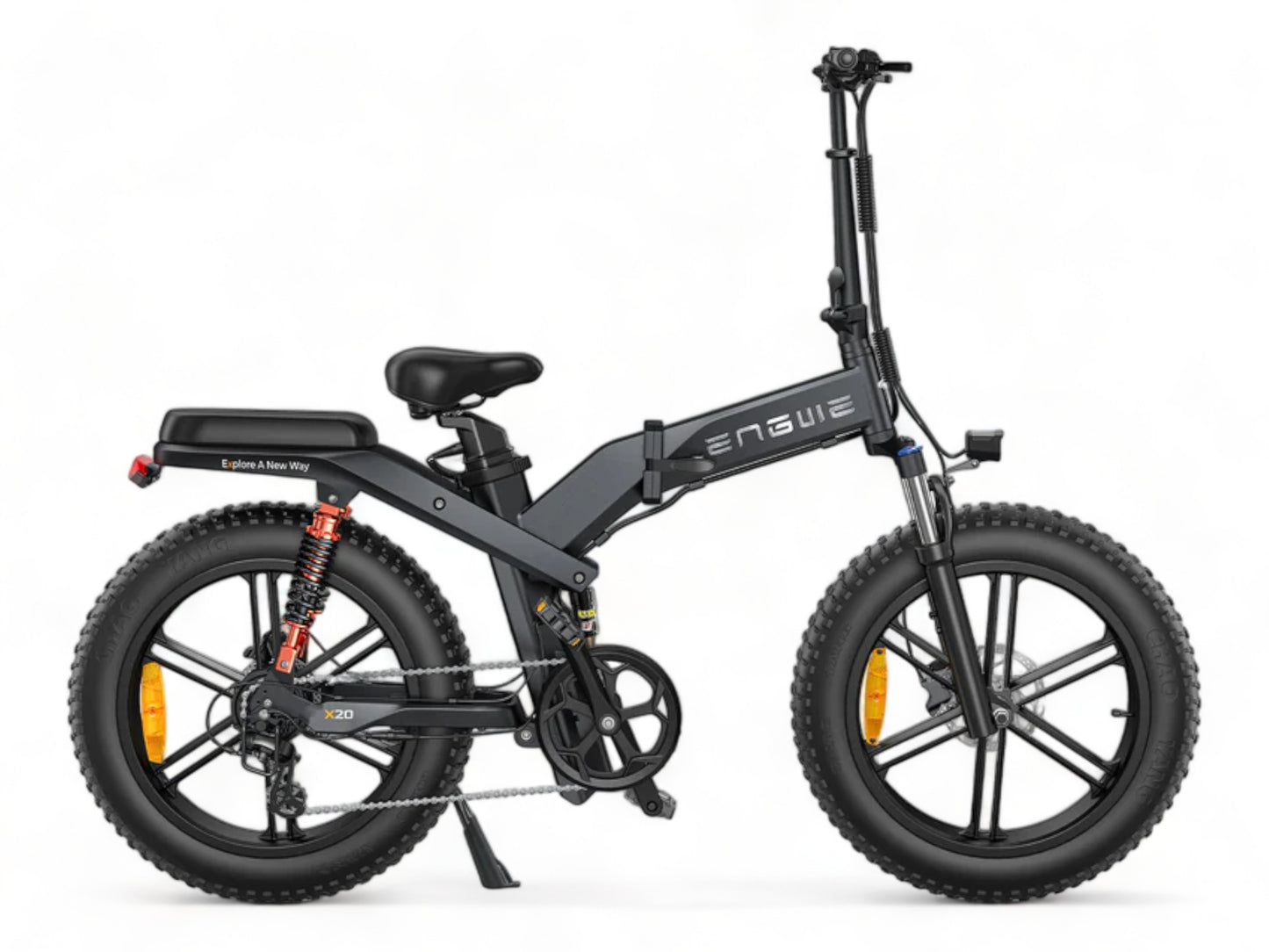

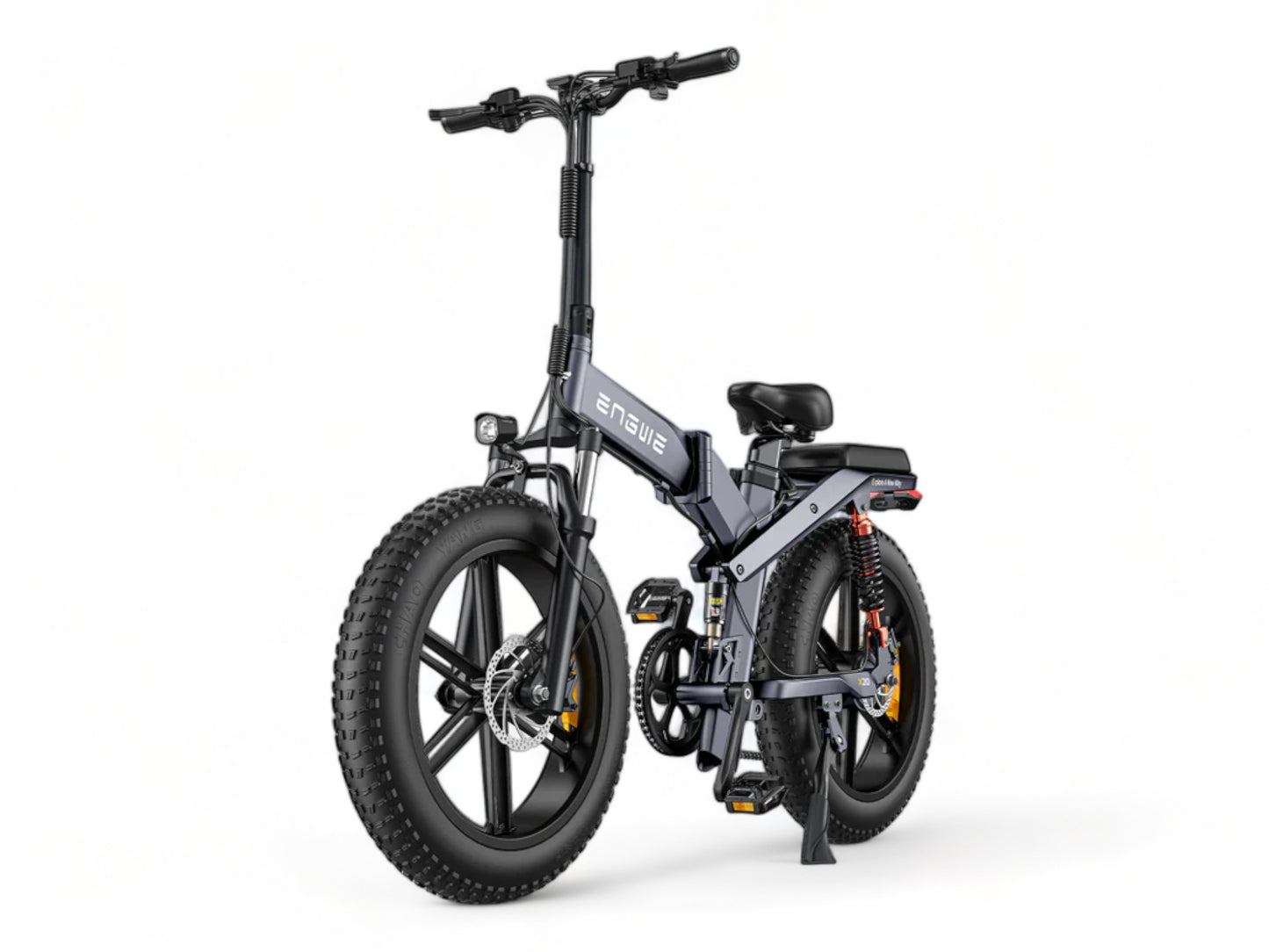

Expertly crafted with 6061 aluminum alloy and a 1000w brushless motor, the Engwe X20 is a powerful and sturdy e-bike. With a top speed of 31MPH and a range of 47 miles in electric mode, it effortlessly tackles even the steepest inclines with its 30° maximum climbing degree. The hydraulic disc brakes and Shimano 8-gear transmission system provide reliable control and precision. Suitable for riders 5.4-6.2ft tall, this bike has a payload capacity of 330lbs and a total bike weight of 82.0 lbs. Enjoy a smooth and efficient ride with Engwe X20.
Share
Size Guide
-
Rider Height:5.4 (ft) -6.2 (ft)
Payload Capacity: 330 lbs (150 kg)
Package Dimensions (LWH): 59.8 inches* 12.6 inches* 28.7 inches (152*32*73 cm)Measurements:
- A -- Height: 44.6 inches (113.5 cm)
- B -- Total Length: 67.1 inches (170.5 cm)
- C -- Reach: 17.2 inches (43.7 cm)
- D -- Standover Height: 24.9 inches (63.3 cm)
- E -- Wheelbase: 44.3 inches (112.5 cm)
- F -- Minimum Saddle Height: 33.2 inches (84.5 cm)
