Urtopia Carbon 1 Pro

Urtopia Carbon 1 Pro

$2,499.00
$2,999.00 $2,499.00
Sale Sold out
Size
Color

Technical Specifications

Smart Features

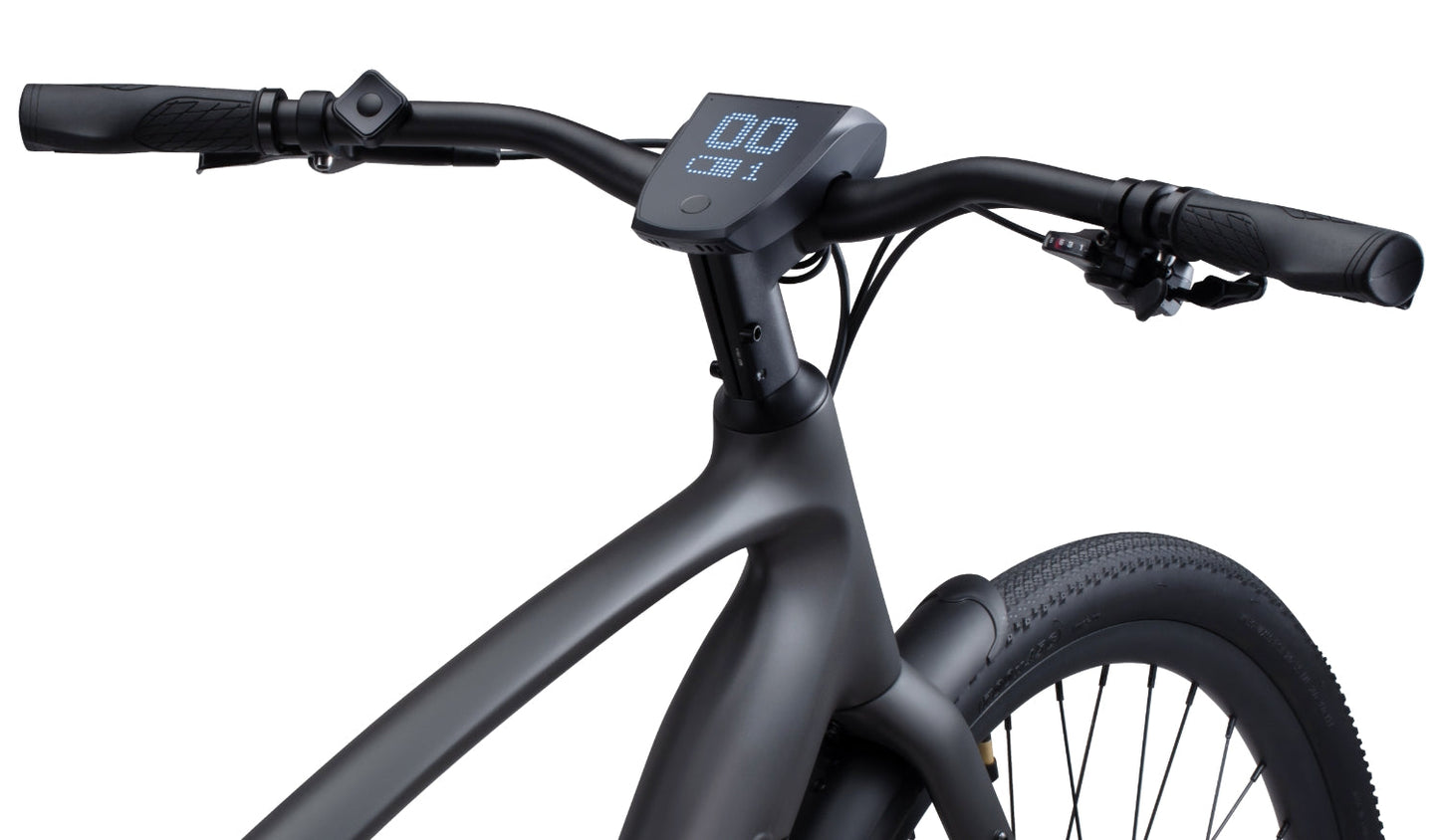

Smartbar Features: Voice control, fingerprint start, LED dot-matrix display, haptic interaction, Bluetooth music, built-in navigation, OTA (Over-the-Air) upgrade.

Connectivity: eSIM with 4G, Bluetooth, GPS.

IoT Sensors: Accelerometer, gyroscope, torque sensor.

App: iOS & Android compatible, Connect Service: 1 year included*.

Power

Motor: Customized rear hub, 36 V 350 W (rated), 45 N⋅m.

Speed modes: Pedal, Eco, Comfort, Sport, Turbo.

Top speed (assisted): 25mph.

Range: Up to 80 miles.

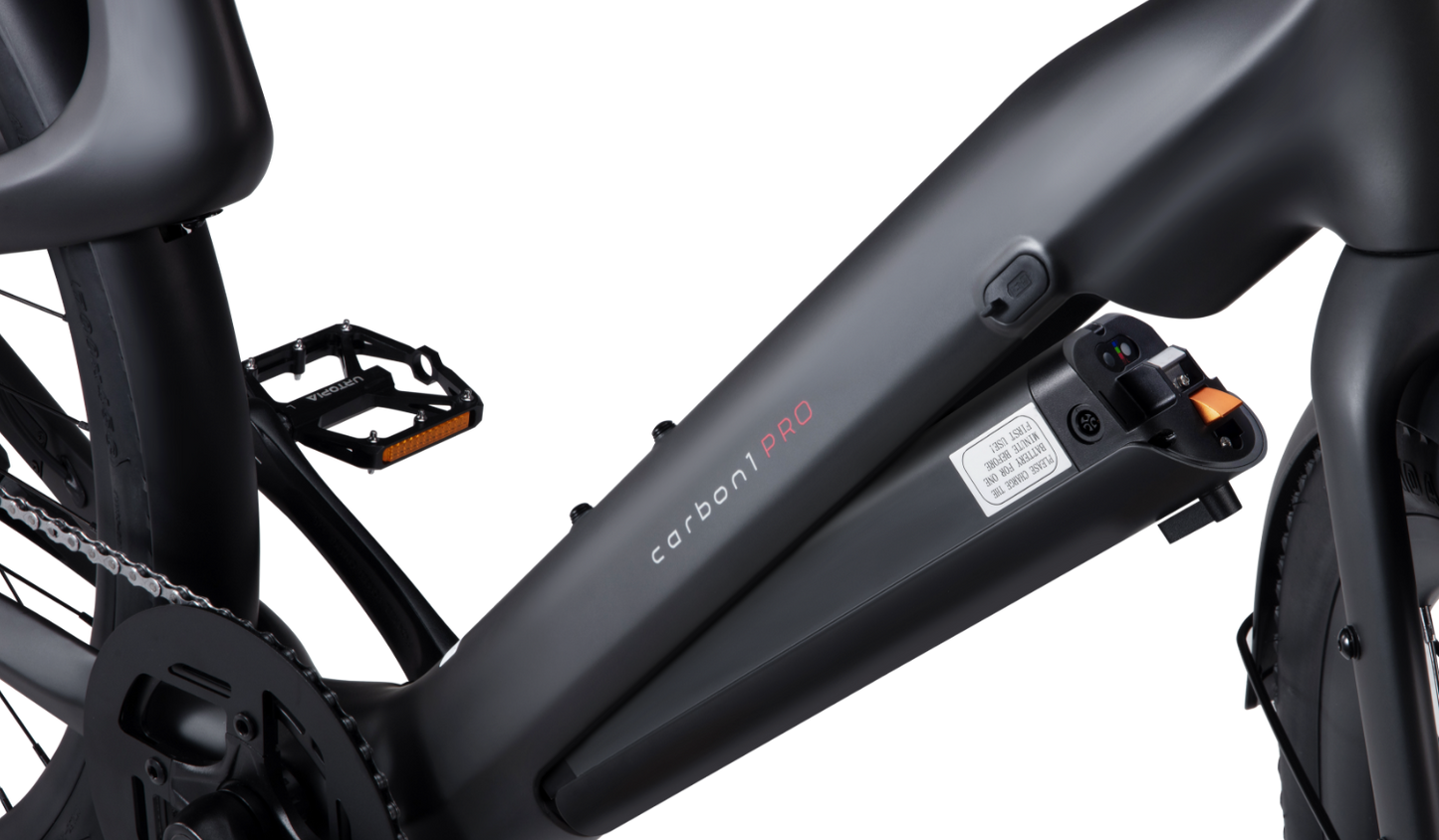

Removable battery: 352.8Wh, Samsung Li-ion, removable battery, 2.5-hr quick charge, certified to UL-2271.

General Specifications

Weight: 37 lbs excl. accessories.

Load-bearing capacity: Max. 240 lbs. (110 kg).

Sizes: Small, Medium, Large (see Size Guide).

Body material: Carbon fiber (frame, fork).

Brakes: Front & rear dual-piston hydraulic disc.

Tires: 700 x 40C.

Lights: Front - Integrated StVZO headlight, Rear - StVZO Rear Light (Not ARES Lights).

Wheels: 700C (ISO 622 mm BSD), inner rim 19 mm.

Transmission: Shimano 8-Speed Rear Drivetrain.

What's in the box?

  • Kickstand, Fenders
  • StVZO Rear Light （Not ARES Lights）

Experience the ultimate ride with Urtopia Carbon 1 Pro. Designed for urban adventures, long-distance tours, and all-day comfort, this e-bike boasts a full carbon fiber frame for unbeatable lightweight performance. Its powerful motor and long-range battery can take you up to 80 miles, while the smart features like GPS tracking, anti-theft protection, fingerprint unlock, and built-in navigation elevate your riding experience. This sleek and versatile e-bike, crafted by a former BMW designer, caters to different riding styles and can be easily customized. Perfect for city commuters, long-distance tourers, and tech enthusiasts, Urtopia Carbon 1 Pro is the e-bike of your dreams.

Urtopia

View full details

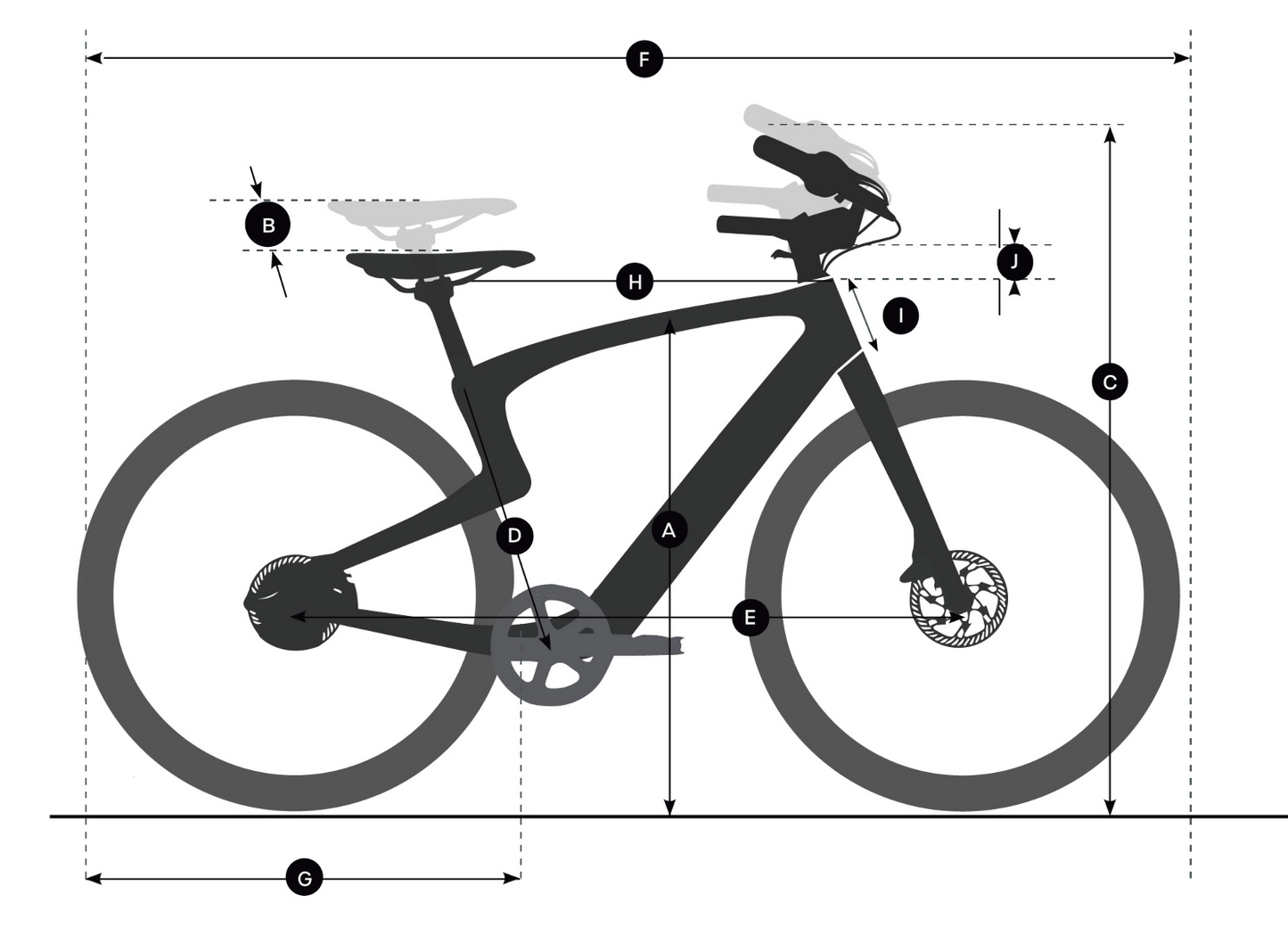

Size Guide

  • Recommended Rider Heights:

    Small (5’3’’~5’9’’):

    • A. Standover Height: 779 mm
    • B. Adjustable Seat Range: 60 mm
    • C. Handlebar Grips Height: 995-1025 mm
    • D. Seat Tube Length: 421 mm
    • E. Wheelbase: 1065 mm
    • F. Overall Length: 1766 mm
    • G. Wheel Diameter: 702 mm
    • H. Top Tube Length (Effective): 594 mm
    • I. Head Tube Length: 152 mm
    • J. Headset Height: 90-120 mm

    Medium (5’7’’~6’1’’):

    • A. Standover Height: 804 mm
    • B. Adjustable Seat Range: 60 mm
    • C. Handlebar Grips Height: 1011-1041 mm
    • D. Seat Tube Length: 463 mm
    • E. Wheelbase: 1093 mm
    • F. Overall Length: 1795 mm
    • G. Wheel Diameter: 702 mm
    • H. Top Tube Length (Effective): 618 mm
    • I. Head Tube Length: 170 mm
    • J. Headset Height: 90-120 mm

    Large (5’11’’~6’5’’):

    • A. Standover Height: 833 mm
    • B. Adjustable Seat Range: 60 mm
    • C. Handlebar Grips Height: 1023-1053 mm
    • D. Seat Tube Length: 498 mm
    • E. Wheelbase: 1122 mm
    • F. Overall Length: 1824 mm
    • G. Wheel Diameter: 702 mm
    • H. Top Tube Length (Effective): 653 mm
    • I. Head Tube Length: 180 mm
    • J. Headset Height: 90-120 mm
